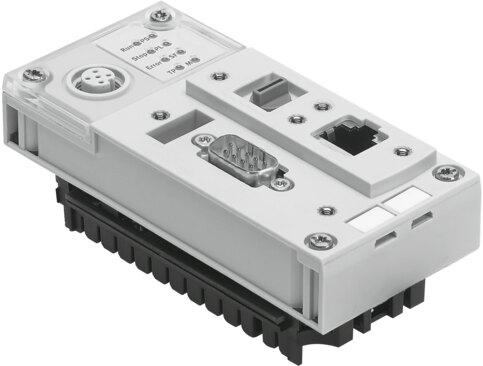

Reference imageConfirm configuration by manufacturer part number.
Festo
567347
Control block CPX-CEC-C1
The Festo part number 567347 is an industrial component measuring 50 mm x 107 mm x 55 mm with a product weight of 155 g, featuring a PA-reinforced and PC housing with IP65 and IP67 protection ratings. It supports CODESYS level 2, EasyIP, Modbus TCP, and TCP/IP protocols, and includes a 9-pin Sub-D plug CAN bus fieldbus interface alongside dedicated product-specific and bus-specific LED displays. Operating within an ambient temperature range of -5 °C to 50 °C, this RoHS compliant device provides channel-oriented and module-oriented diagnostics, diagnostic memory, and undervoltage or short-circuit module detection. Request a quote today by submitting your exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567347
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567347.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- CODESYS level 2 | EasyIP | Modbus® TCP | TCP/IP
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Product weight
- 155 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- ERR: PLC runtime error | M: Modify/force enabled | PL: Load supply | PS: electronics supply, sensor supply | RUN: PLC status | SF: System fault | STOP: PLC status
- LED display (bus-specic)
- TP: Link/traffic
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage/short circuit of modules | Diagnostic memory
- Control elements
- DIL switch for CAN termination | Rotary switch for RUN/Stop
- IP address setting
- DHCP | Via CODESYS | Via MMI
- Fieldbus interface, type
- CAN bus
- Fieldbus interface, connection technology
- Plug | Sub-D | 9-pin
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567347. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
