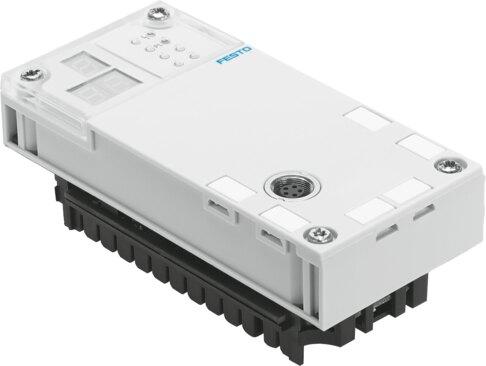

Name: Festo 567417 Measuring module CPX-CMIX-M1-1
Brand: Festo

Measuring module CPX-CMIX-M1-1

The Festo part number 567417 is an industrial component measuring 50 mm x 107 mm x 55 mm with a product weight of 140 g, operating within a DC voltage range of 18 V to 30 V at a nominal 24 V. Featuring a 7-segment display and status LEDs indicating power load and errors, this unit supports 1 axis per string across 1 axis string and accommodates a maximum of 9 modules. It provides channel-oriented and module-oriented diagnostics with short-circuit protection, maintaining an IP65 degree of protection according to IEC 60529 within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567417
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567417.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 50 mm x 107 mm x 55 mm
Diagnostics: Channel-oriented and module-oriented diagnostics
Short-circuit protection: Yes
Device-specic diagnostics: Undervoltage of modules | Measuring system undervoltage | Via local 7-segment display
Max. number of modules: 9
Display: 7-segment display
Status indications: LED yellow = PL (power load) | Red LED = error
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Power failure buﬀering: 10 ms
Current consumption at nominal operating voltage: 80 mA
Certication: C-Tick
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...70 °C
Relative air humidity: 5 - 95% | Non-condensating
Degree of protection: IP65 | As per IEC 60529
Ambient temperature: -5 °C...50 °C
Product weight: 140 g
Axes per string: 1
No. of axis strings: 1
Max. cable length: 30 m
Electrical connection, control interface: Socket | M9 | 5-pin
Control interface: digital | CAN bus with Festo protocol
Note on materials: RoHS compliant
Housing material: PA-reinforced
