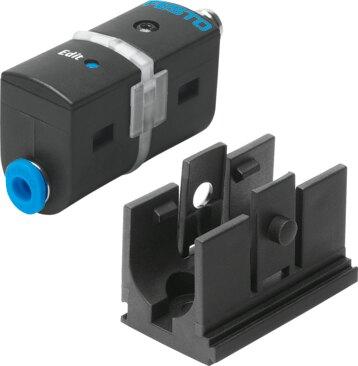

Name: Festo 567465 Pressure sensor SDE5-D10-NF-Q6E-V-M8
Brand: Festo

Pressure sensor SDE5-D10-NF-Q6E-V-M8

The Festo part number 567465 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 bar to 10 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with lubricated operation possible. It features an analog output of 0 to 10 V, a repetition accuracy of 0.3 %FS, a linearity error of 0.3 %FS, short-circuit protection, and operates within a medium and ambient temperature range of 0 °C to 50 °C. This component carries RCM and c UL us recognitions, alongside CE and UKCA markings conforming to applicable EMC and RoHS directives and material standards. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567465
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567465.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: 0 bar
Pressure measuring range end value: 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.05 %FS/K
Analog output: 0 - 10 V
Output characteristic curve initial value: 0 V
End value output characteristic curve: 10 V
Precision analog output in ± %FS: 3 %FS
Linearity error in ± % FS: 0.3 %FS
Short-circuit protection: Yes
DC operating voltage range: 15 V...30 V
Reverse polarity protection: for all electrical connections
Electrical connection: 3-pin | M8x1 | Plug | As per EN 60947-5-2 | Round design
Type of mounting: With accessories
Mounting position: Any
Pneumatic connection: QS-6
