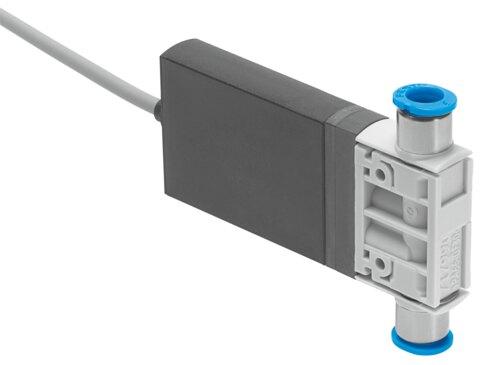

Reference imageConfirm configuration by manufacturer part number.
Festo
567504
Air solenoid valve MHJ10-S-2,5-QS-1/4-HF-U
The Festo 567504 is a 10 mm wide electrical 2/2 closed monostable industrial component featuring a direct control type and a hard sealing principle with a poppet valve design without a return spring. It delivers a normal nominal flow rate of 160 l/min through a QS-1/4 pneumatic working port, operating at 24V DC within an operating pressure range of 0.05 MPa to 0.6 MPa. This IP55-rated unit incorporates a pneumatic spring reset method, operates in any mounting position, and carries CE, UKCA, and RCM compliance markings. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 160 l/min
- Pneumatic working port
- QS-1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.05 MPa...0.6 MPa | 0.5 bar...6 bar | 7.25 psi...87 psi
- Structural design
- Poppet valve without return spring
- Reset method
- Pneumatic spring
- Degree of protection
- IP55
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Width dimension
- 10.5 mm
- Operating conditions to DIN VDE 0580
- S3 50% 20min. for single pneumatic valve | S3 25% 20 min for block assembly
- Information on operation
- Power supply unit must be able to supply at least 1.7 A without voltage | drop. | Do not operate without ow.
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- Direct
- Flow direction
- Non-reversible
- Reverse polarity protection
- for operating voltage
- Additional functions
- Spark suppression | Holding current reduction with energy recovery | Safety shut-down
- b-value
- 0.36
- C value
- 0.66 l/sbar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567504. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
