Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

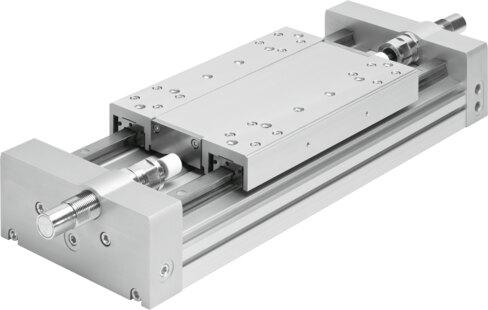

Reference imageConfirm configuration by manufacturer part number.
Festo
567547
Linear actuator DGC-18- -HD-
Manufactured by Festo under part number 567547, this double-acting industrial component features an 18 mm piston diameter, an adjustable stroke ranging from 1 mm to 3000 mm, and a recirculating ball bearing guide. Operating within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar) on compressed air as per ISO 8573-1:2010 [7:-:-], the unit delivers a theoretical force of 153 N both advancing and retracting at 6 bar. It incorporates pneumatic shock absorbers with either hard or soft characteristic curves, position sensing via proximity switch, and supports any mounting position using accessories. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...3000 mm
- Piston diameter
- 18 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- Via proximity switch
- Variants
- Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Theoretical force at 6 bar, retracting
- 153 N
- Theoretical force at 6 bar, advancing
- 153 N
- Moving mass
- 0.921 kg...1.06 kg
- Moving mass at 0 mm stroke
- 3.85 kg...3.99 kg
- Additional weight per 10 mm stroke
- 0.071 kg
- Type of mounting
- With accessories
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
