Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

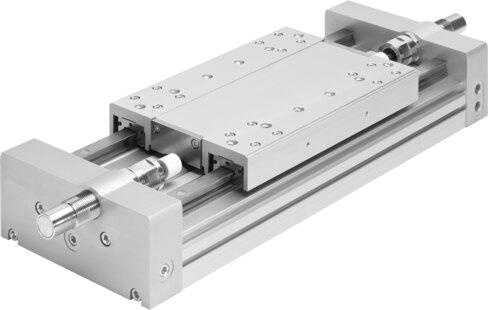

Reference imageConfirm configuration by manufacturer part number.
Festo
567548
Linear actuator DGC-25- -HD-
The Festo 567548 is a double-acting industrial component with a 25 mm piston diameter, an adjustable stroke ranging from 1 mm to 5000 mm, and an operating pressure of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar). Operating via compressed air per ISO 8573-1:2010 [7:-:-], this unit features a recirculating ball bearing guide, position sensing via proximity switch, and pneumatic shock absorber cushioning with hard or soft characteristic curves. It provides a theoretical force of 295 N at 6 bar in both retracting and advancing directions, operates within an ambient temperature range of -10 °C to 60 °C, and requires mounting with accessories. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567548
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567548.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...5000 mm
- Piston diameter
- 25 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- Via proximity switch
- Variants
- Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 2.25 kg
- Moving mass at 0 mm stroke
- 7.51 kg
- Additional weight per 10 mm stroke
- 0.105 kg
- Type of mounting
- With accessories
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567548. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
