Festo
567549

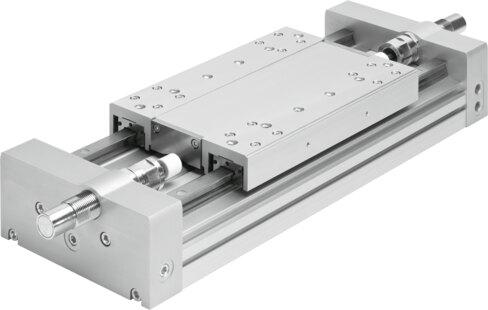

Linear actuator DGC-40- -HD-
The Festo 567549 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke ranging from 1 mm to 3500 mm, and a recirculating ball bearing guide. Operating on compressed air according to ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this unit delivers a theoretical force of 754 N both advancing and retracting at 6 bar. It incorporates pneumatic shock absorbers with hard or soft characteristic curves, position sensing via proximity switch, and supports mounting in any position with accessories. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567549
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567549.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...3500 mm
- Piston diameter
- 40 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- Via proximity switch
- Variants
- Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Theoretical force at 6 bar, retracting
- 754 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 6.18 kg
- Moving mass at 0 mm stroke
- 20.5 kg
- Additional weight per 10 mm stroke
- 0.199 kg
- Type of mounting
- With accessories
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
