Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
567786

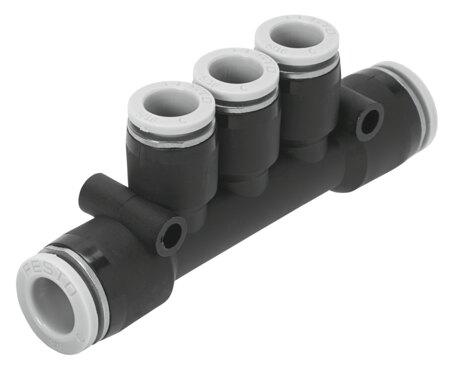

Multiple distributor QBT3-3/16T-5/32-U
This Festo T-shape industrial component, part number 567786, features a nominal width of 0.126 inches and a push-pull structural design supporting pneumatic connections for 3/16-inch and 5/32-inch outside diameter tubing. The PBT housing includes a gray POM releasing ring and an NBR tubing seal, operating across a pressure range of -13.775 psi to 145 psi and temperatures from 32 °F to 140 °F using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Delivered in a pack size of five with a product weight of 0.85 oz, the RoHS-compliant unit accommodates lubricated operation and has a corrosion resistance class of 1 with VDMA24364 Zone III LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567786
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567786.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.126 in
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 32 °F...140 °F
- Product weight
- 0.85 oz
- Pneumatic connection 1
- For pneumatic tubing outside diameter 3/16"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567786. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
