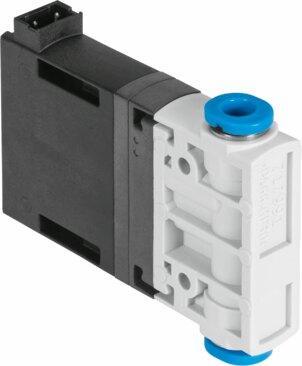

Reference imageConfirm configuration by manufacturer part number.
Festo
567793
Air solenoid valve MHJ9-QS-6-HF/LP
Festo Air solenoid valve MHJ9-QS-6-HF/LP, part number 567793, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 567793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 9 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 160 l/min
- Pneumatic working port
- QS-6
- Operating voltage
- 24V DC
- Operating pressure
- 0.05 MPa...0.4 MPa | 0.5 bar...4 bar | 7.25 psi...58 psi
- Structural design
- Poppet valve without return spring
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Width dimension
- 9.5 mm
- Information on operation
- Do not operate without ow. | For block assembly with ow rate at max. ambient temperature 45 °C.
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Non-reversible
- b-value
- 0.36
- C value
- 0.66 l/sbar
- Max. switching frequency
- 500 Hz
- Switching time on at 4 bar and 24 V in new condition
- 1 ms
- Switching time off at 4 bar and 24 V in new condition
- 0.4 ms
- Switching time on at 4 bar and 48 V in new condition
- 0.8 ms
- Switching time off at 4 bar and 48 V in new condition
- 0.4 ms
- Switching time on at 4 bar and 12 V in new condition
- 1.3 ms
- Switching time off at 4 bar and 12 V in new condition
- 0.5 ms
- Switching time on at 0.5 bar and 24 V in new condition
- 0.8 ms
- Switching time off at 0.5 bar and 24 V in new condition
- 0.5 ms
- Tolerance for ON switching time
- +/-15%
