567798

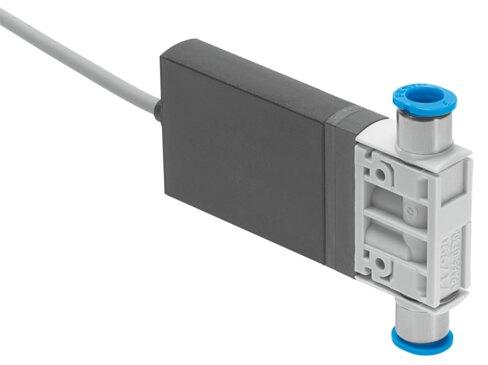

Name: Festo 567798 Air solenoid valve MHJ10-S-2,5-QS-6-HF/LP
Brand: Festo

Air solenoid valve MHJ10-S-2,5-QS-6-HF/LP

The Festo 567798 is a 10 mm wide electrical 2/2-way closed monostable industrial component featuring a directly controlled poppet valve design without a return spring and a pneumatic spring reset method. It delivers a normal nominal flow rate of 160 l/min through a QS-6 pneumatic working port within an operating pressure range of 0.05 MPa to 0.4 MPa (0.5 bar to 4 bar / 7.25 psi to 58 psi) at 24V DC. Operating with a hard sealing principle and IP55 protection, this non-reversible component includes RCM compliance alongside CE and UKCA markings for EMC and RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567798
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567798.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2/2-way, closed, monostable
Actuation type: Electrical
Width: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 160 l/min
Pneumatic working port: QS-6
Operating voltage: 24V DC
Operating pressure: 0.05 MPa...0.4 MPa | 0.5 bar...4 bar | 7.25 psi...58 psi
Structural design: Poppet valve without return spring
Reset method: Pneumatic spring
Degree of protection: IP55
Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Width dimension: 10.5 mm
Information on operation: Power supply unit must be able to supply at least 1.7 A without voltage | drop. | Do not operate without ow. | For block assembly with ow rate at max. ambient temperature 45 °C.
Sealing principle: Hard
Mounting position: Any
Manual override: None
Type of control: directly
Flow direction: Non-reversible
Reverse polarity protection: For operating voltage
Additional functions: Spark arresting | Holding current reduction with energy recovery | Safety shut-oﬀ
b-value: 0.36
C value: 0.66 l/sbar
Max. switching frequency: 500 Hz

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 567798. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
