Festo
567805

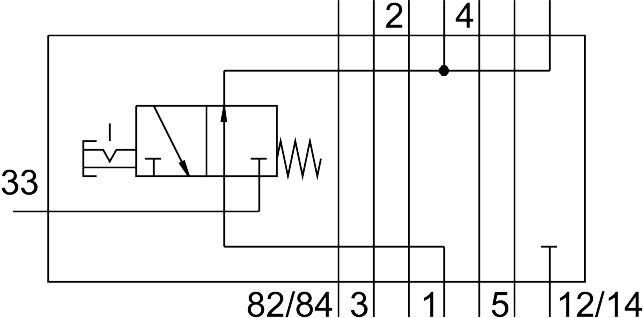

Vertical pressure shut-off plate VMPA1-HS
The Festo 567805 is a 10 mm industrial component featuring pneumatic vertical stacking with a shut-off function for 1, operating within a pressure range of 3 bar to 8 bar. This unit delivers a standard nominal flow rate of 103 l/min for pressurization and 213 l/min for exhaust air while utilizing compressed air per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Constructed with a wrought aluminum alloy and reinforced PA housing providing IP65 protection and CRC 2 moderate corrosion resistance, the 60 g component mounts on a manifold or individual sub-base in any position. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567805
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567805.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 10 mm
- Mounting position
- Any
- Pneumatic vertical stacking
- Shut-off for 1
- Operating pressure
- 3 bar...8 bar
- Standard nominal ow rate pressurization
- 103 l/min
- Standard nominal ow rate exhaust air
- 213 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 60 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567805. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
