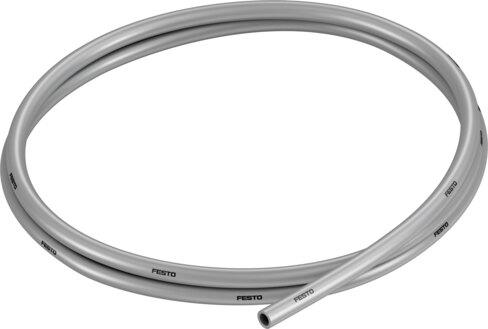

Name: Festo 567940 Plastic tubing PUN-H-1/4-SI-150-CB
Brand: Festo

Plastic tubing PUN-H-1/4-SI-150-CB

This Festo 567940 industrial component is an ether-based TPE-U pneumatic tubing featuring a 1/4" external diameter, a D 52 +/-3 Shore hardness, and a silver color suitable for energy chains. The tubing operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, supporting temperature-dependent operating pressures from -14.4 psi to 145 psi and ambient temperatures between -31 °F and 145 °F. Constructed with RoHS-compliant materials meeting UL94 HB fire testing and VDMA24364-B2-L LABS conformity, it is also suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567940
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567940.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

External-Ø inches: 1/4
Bending radius relevant for ow rate: 0.085 Feet
Min. bending radius: 0.032 Feet
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -14.4 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -31 °F...145 °F
Product weight by length: 2.47 oz/ft
Pneumatic connection: For plug connection outside diameter 1/4"
Color: Silver
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
