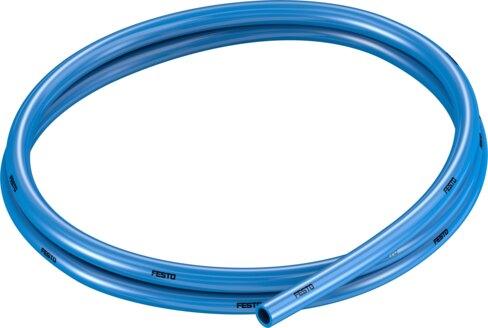

Name: Festo 567949 Plastic tubing PUN-H-5/16-BL-150-CB
Brand: Festo

Plastic tubing PUN-H-5/16-BL-150-CB

This Festo industrial component, part number 567949, is a blue TPE-U ether-based pneumatic tubing featuring a 5/16 inch external diameter and a Shore hardness of D 52 +/-3. It accommodates a temperature-dependent operating pressure from -14.4 psi to 145 psi for compressed air as per ISO 8573-1:2010 [7:-:-] and liquid water, while supporting an ambient temperature range of -31 °F to 145 °F. The tubing exhibits a minimum bending radius of 0.065 feet, a bending radius relevant for flow rate of 0.121 feet, a product weight of 3.33 oz/ft, and suitability for energy chains and Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567949
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567949.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

External-Ø inches: 5/16
Bending radius relevant for ow rate: 0.121 Feet
Min. bending radius: 0.065 Feet
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -14.4 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -31 °F...145 °F
Product weight by length: 3.33 oz/ft
Pneumatic connection: For plug connection outside diameter 8 mm | For plug connection outside diameter 5/16"
Color: Blue
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 567949. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
