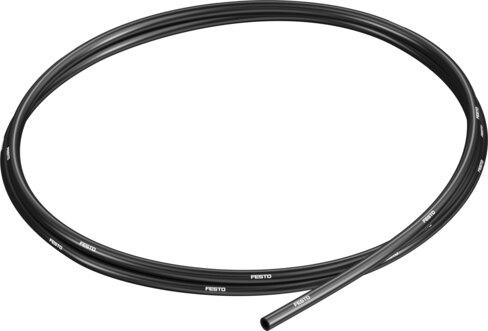

Name: Festo 567955 Plastic tubing PUN-H-3/16-SW-150-CB
Brand: Festo

Plastic tubing PUN-H-3/16-SW-150-CB

The Festo 567955 is an industrial pneumatic tubing component manufactured from ether-based TPE-U with a 3/16 inch external diameter, a black finish, and a Shore hardness of D 52 +/-3. It features a minimum bending radius of 0.025 feet, a bending radius relevant for flow rate of 0.069 feet, and a weight of 1.4 oz/ft, making it suitable for energy chains, compressed air, and liquid water applications within a temperature range of -31 °F to 145 °F. This RoHS-compliant part supports temperature-dependent operating pressures from -14.4 psi to 145 psi and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) with VDMA24364-B2-L LABS conformity and a UL94 HB material fire test rating. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567955
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567955.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

External-Ø inches: 3/16
Bending radius relevant for ow rate: 0.069 Feet
Min. bending radius: 0.025 Feet
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -14.4 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -31 °F...145 °F
Product weight by length: 1.4 oz/ft
Pneumatic connection: For plug connection outside diameter 3/16"
Color: Black
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 567955. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
