Festo
567975

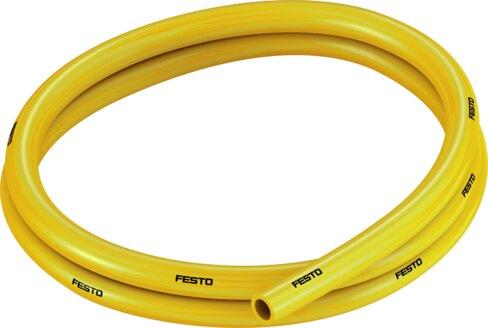

Plastic tubing PUN-H-1/2-GE-150-CB
Engineered by Festo with ether-based TPE-U material, this yellow industrial component features a 1/2-inch external diameter and is suitable for energy chains with a minimum bending radius of 0.075 feet. The tubing operates within a temperature-dependent pressure range of -14.4 psi to 145 psi for compressed air and water, supporting ambient temperatures from -31 °F to 145 °F. It demonstrates UL94 HB fire test compliance, VDMA24364-B2-L LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567975
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567975.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- External-Ø inches
- 1/2
- Bending radius relevant for ow rate
- 0.204 Feet
- Min. bending radius
- 0.075 Feet
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -14.4 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -31 °F...145 °F
- Product weight by length
- 9.46 oz/ft
- Pneumatic connection
- For plug connection outside diameter 1/2"
- Color
- Yellow
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
