Festo
567993

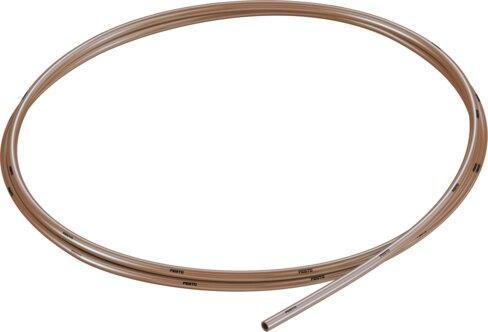

Plastic tubing PUN-H-1/8-BR-150-CB
This Festo industrial component (Part Number: 567993) is an ether-based TPE-U brown pneumatic tubing with a 1/8 inch external diameter and a Shore hardness of D 52 +/-3. It features a minimum bending radius of 0.02 feet, a bending radius relevant for flow rate of 0.039 feet, and a product weight of 0.645 oz/ft while supporting operating pressures from -14.4 psi to 145 psi for compressed air and water. The RoHS compliant tubing is suitable for energy chains and Li-ion battery production with reduced Cu/Zn/Ni values, exhibiting UL94 HB material fire test performance and VDMA24364-B2-L LABS conformity across an ambient temperature range of -31 °F to 145 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567993
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567993.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- External-Ø inches
- 1/8
- Bending radius relevant for ow rate
- 0.039 Feet
- Min. bending radius
- 0.02 Feet
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -14.4 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -31 °F...145 °F
- Product weight by length
- 0.645 oz/ft
- Pneumatic connection
- For plug connection outside diameter 1/8"
- Color
- Brown
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
