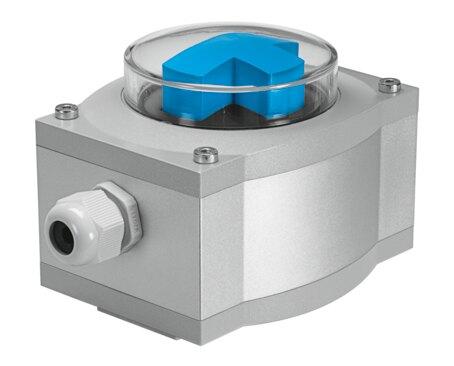

Reference imageConfirm configuration by manufacturer part number.
Festo
568237
Limit switch box SRAP-M-CA1-BB270-1-A-TP20-EX2
The Festo 568237 is a rectangular industrial component based on the VDI/VDE 3845 NAMUR norm that utilizes a magnetic Hall measuring principle to monitor rotation angles with an analog output of 4-20 mA and a repetition accuracy of ±1°. This RoHS-compliant unit operates in ambient temperatures from -20°C to 80°C and features short-circuit and overload protection, along with CE and UKCA markings, RCM compliance, c UL us recognition, and ATEX and UKEX Zone 2 and 22 certifications for explosive environments. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 568237
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 568237.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Rectangular
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T5 Gc X
- ATEX category for dust
- II 3D
- Type of (ignition) protection for dust
- Ex tc IIIC T90°C Dc X
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosive ambient temperature
- -20°C <= Ta <= +80°C
- Note on materials
- RoHS-compliant
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Ambient temperature
- -20 °C...80 °C
- Analog output
- 4 - 20 mA
- Repetition accuracy analog output in ± °
- 1 deg
- Short-circuit protection
- yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Idle current
- 12 mA...20 mA
- Reverse polarity protection
- for all electrical connections
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 568237. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
