Festo
568238

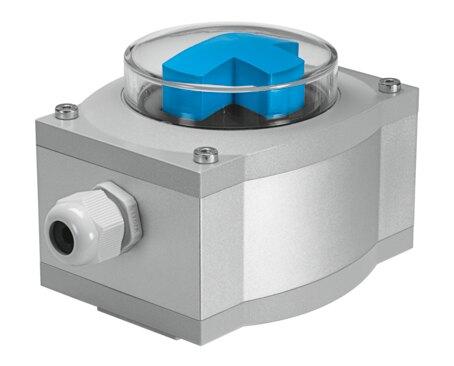

Limit switch box SRAP-M-CA1-GR270-1-A-TM20
The Festo 568238 is a square industrial component based on the VDI/VDE 3845 NAMUR norm, featuring a magnetic Hall measuring principle for rotation angle feedback. It operates on a 15 V to 30 V DC voltage range with a 4 to 20 mA analog output, 1 degree repetition accuracy, short-circuit protection, and overload protection. The unit functions in ambient temperatures from -20 °C to 80 °C and includes a 9-pin pluggable screw terminal electrical connection with an M20 cable fitting for 5 mm to 13 mm cables. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 568238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 568238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Ambient temperature
- -20 °C...80 °C
- Analog output
- 4 - 20 mA
- Repetition accuracy analog output in ± °
- 1 deg
- Short-circuit protection
- Yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Idle current
- 12 mA...20 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 9-pin | Screw terminal | Can be plugged in
- Closable nominal conductor cross-section
- 2.5 mm²
- Cable tting
- M20
- Approved cable diameter
- 5 mm...13 mm
- Max. cable length
- 30 m
- Mounting position
- Any
- Product weight
- 1000 g
- Housing material
- Wrought aluminum alloy
- Position indicator
- Red/green
- Setting options
- Teach-in | Teach-in via electrical connection
- Angle detection setting range
- 0 deg...270 deg
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 568238. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
