Name: Festo 568246 Limit switch box SRAP-M-CA1-GR270-1-A-T2P20
Brand: Festo

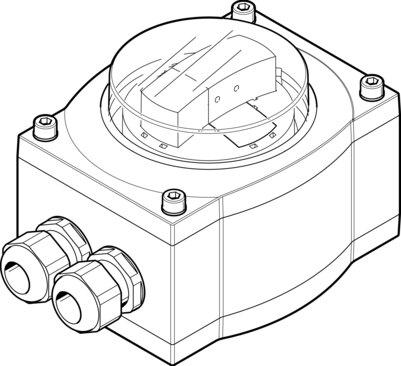

Limit switch box SRAP-M-CA1-GR270-1-A-T2P20

The Festo 568246 is a square industrial component utilizing a magnetic Hall measuring principle based on the VDI/VDE 3845 NAMUR norm to measure rotation angle. It features a 4 to 20 mA analog output with a 1 degree repetition accuracy, operating on a 15 V to 30 V DC voltage range within ambient temperatures of -20 °C to 80 °C. The unit includes short-circuit protection, overload protection, and reverse polarity protection for all electrical connections, along with a 9-pin pluggable screw terminal, M20 cable fitting for 5 mm to 13 mm cables, and a 2.5 mm² closable nominal conductor cross-section. Compliance is verified by the RCM mark, c UL us recognition, and CE and UKCA markings for EMC and RoHS directives alongside RoHS material compliance. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 568246
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 568246.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Square
Based on norm: VDI/VDE 3845 (NAMUR)
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Rotation angle
Measuring principle: Magnetic Hall
Ambient temperature: -20 °C...80 °C
Analog output: 4 - 20 mA
Repetition accuracy analog output in ± °: 1 deg
Short-circuit protection: Yes
Overload protection: Available
DC operating voltage range: 15 V...30 V
Idle current: 12 mA...20 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 9-pin | Screw terminal | Can be plugged in
Closable nominal conductor cross-section: 2.5 mm²
Cable tting: M20
Approved cable diameter: 5 mm...13 mm
Max. cable length: 30 m
Mounting position: Any
Product weight: 1000 g
Housing material: Wrought aluminum alloy
Position indicator: Red/green
Setting options: Teach-in | Teach-in via electrical connection
Angle detection setting range: 0 deg...270 deg
