Festo
568247

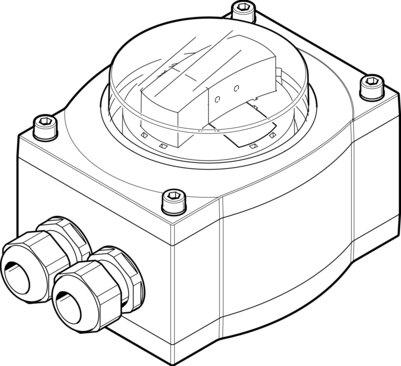

Limit switch box SRAP-M-CA1-GR270-1-A-T2P20-EX2
This square industrial component from Festo utilizes a magnetic Hall measuring principle based on the VDI/VDE 3845 NAMUR norm to measure rotation angle with a 4 to 20 mA analog output and a repetition accuracy of ±1 degree. Featuring short-circuit and overload protection, the unit operates within an ambient temperature range of -20 °C to 80 °C and holds RCM, c UL us, CE, and UKCA certifications, alongside ATEX and UKEX Zone 2 and Zone 22 explosion protection ratings. RoHS compliant and designed for explosive ambient temperatures from -20°C to +80°C, this device meets specific gas and dust ignition protection standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 568247
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 568247.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T5 Gc X
- ATEX category for dust
- II 3D
- Type of (ignition) protection for dust
- Ex tc IIIC T90°C Dc X
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosive ambient temperature
- -20°C <= Ta <= +80°C
- Note on materials
- RoHS compliant
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Ambient temperature
- -20 °C...80 °C
- Analog output
- 4 - 20 mA
- Repetition accuracy analog output in ± °
- 1 deg
- Short-circuit protection
- Yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Idle current
- 12 mA...20 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 9-pin | Screw terminal
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 568247. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
