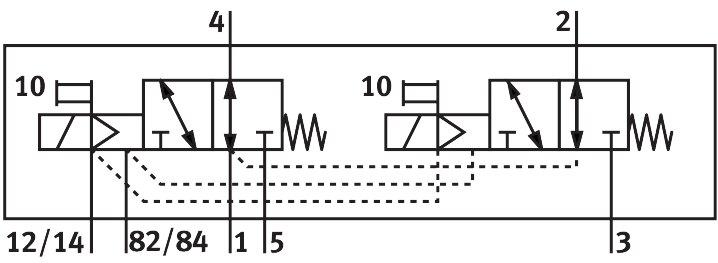

Reference imageConfirm configuration by manufacturer part number.
Festo
568655
Air solenoid valve VMPA2-M1H-NS-PI
The Festo 568655 is an electrical 2x3/2 open monostable industrial component featuring a piston gate valve structural design and a 20 mm valve size. This piloted unit operates at 24V DC with an operating pressure of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar), a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), and delivers a normal nominal flow rate between 550 l/min and 580 l/min. Equipped with a soft sealing principle, mechanical spring reset, positive overlap lap, reversible flow direction, and both detenting and non-detenting manual override, it includes an IP65 degree of protection, signal status display, and vacuum suitability for any mounting position. Certified as c UL us recognized (OL), this component is available now. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 568655
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 568655.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...580 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 580 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min
- Standard nominal ow rate with QS-10
- 580 l/min
- Switching time off
- 25 ms
- On switching time
- 12 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Permissible voltage uctuations
- +/- 25%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 568655. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
