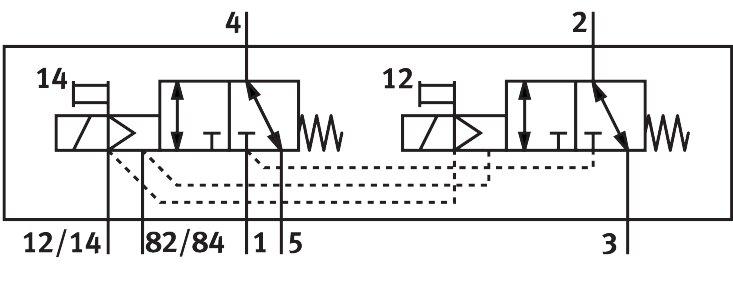

Reference imageConfirm configuration by manufacturer part number.
Festo
568656
Air solenoid valve VMPA2-M1H-KS-PI
The Festo 568656 is an electrical 20 mm piston gate valve featuring a 2x3/2 closed, monostable valve function with piloted, reversible flow control and positive overlap lap. Operating on a 24V DC supply with an operating pressure range of -0.9 bar to 8 bar and vacuum suitability, this IP65-rated component delivers a normal nominal flow rate between 480 l/min and 500 l/min via a soft sealing principle. It incorporates mechanical spring reset, detenting and non-detenting manual override, a signal status display, and operates within a pilot pressure range of 3 bar to 8 bar while maintaining c UL us recognition and an arbitrary mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 568656
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 568656.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 480 l/min...500 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 480 l/min | MPA-S: 500 l/min
- Standard nominal ow rate with QS-8
- 500 l/min
- Standard nominal ow rate with QS-10
- 480 l/min
- Switching time off
- 25 ms
- On switching time
- 12 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Permissible voltage uctuations
- +/- 25%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 568656. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
