Name: Festo 569793 Mini slide DGSC-6-10-P-L
Brand: Festo

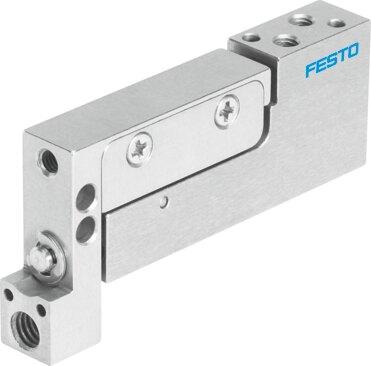

Mini slide DGSC-6-10-P-L

The Festo part number 569793 is a double-acting industrial component featuring a 6 mm piston diameter, a 10 mm stroke, and a kinematic yoke drive unit operating mode with elastic cushioning rings or pads at both ends. This unit incorporates a ball bearing cage guide, supports any mounting position without position sensing, and operates within a pressure range of 1 bar to 6 bar (14.5 psi to 87 psi) using compressed air as per ISO 8573-1:2010 [7:4:4]. It handles a repetition accuracy of 0.2 mm, maximum forces Fy and Fz of 20 N each, and maximum torques Mx of 0.3 Nm and My of 0.4 Nm within an ambient temperature range of 10 °C to 50 °C. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 569793
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 569793.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 6 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Kinematic yoke system
Position sensing: None
Operating pressure: 0.1 MPa...0.6 MPa | 1 bar...6 bar | 14.5 psi...87 psi
Repetition accuracy: 0.2 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 10 °C...50 °C
Max. force Fy: 20 N
Max. force Fz: 20 N
Max. torque Mx: 0.3 Nm
Max. torque My: 0.4 Nm
Max. torque Mz: 0.4 Nm
Max. payload as a function of the stroke at dened distance xs: 30 N
Max. payload: 0.03 kg
Theoretical force at 6 bar, retracting: 12.7 N
Theoretical force at 6 bar, advancing: 17 N
Moving mass: 17 g
Product weight: 42 g
Type of mounting: With internal thread and dowel pin
Pneumatic connection: M3
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 569793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
