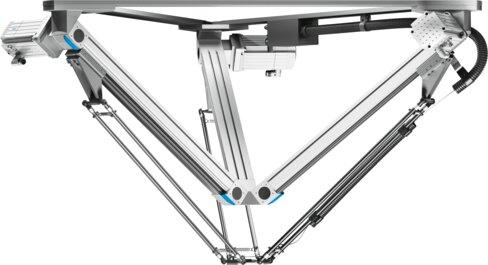

Reference imageConfirm configuration by manufacturer part number.
Festo
569799
Parallel kinematic system EXPT-95-E4
The Festo 569799 is a parallel kinematic system industrial component of size 95 featuring a horizontal mounting position and a servo motor drive with a 100% duty cycle. It provides a nominal working space diameter of 950 mm, a nominal height of 100 mm, a maximum speed of 7 m/s, a maximum acceleration of 110 m/s², and a maximum picking rate of 140 picks/min in a 12" cycle. The unit handles a maximum rated load of 5 kg, a rated load of 1 kg with maximum dynamic response, a maximum process force in the Z direction of 1000 N, and a typical process force of 750 N for working space diameters up to 237.5 mm, while delivering a repetition accuracy of ±0.1 mm, positioning and track precision of ±0.5 mm, and a base kinematic weight of 61.5 kg against maximum frame strengths of 200 N horizontally and 325 N vertically. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 569799
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 569799.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Parallel kinematic system
- Size
- 95
- Working space nominal diameter
- 950 mm
- Working space nominal height
- 100 mm
- Mounting position
- Horizontal
- Motor type
- Servo motor
- Duty cycle
- 100%
- Max. acceleration
- 110 m/s²
- Max. speed
- 7 m/s
- Max. picking rate
- 140 picks/min in 12" cycle
- Maximum rated load
- 5 kg
- Rated load with maximum dynamic response
- 1 kg
- Positioning accuracy
- ± 0.5 mm
- Track precision
- ± 0.5 mm
- Repetition accuracy
- ±0.1 mm
- Max. process force in Z direction
- 1000 N
- Typical process force in z direction
- 750 N working space diameter up to 237.5 mm
- Base weight of the kinematics
- 61.5 kg
- Max. frame strength horizontal
- 200 N
- Max. frame strength vertical
- 325 N
- Ambient temperature
- 0 °C...40 °C
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 569799. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
