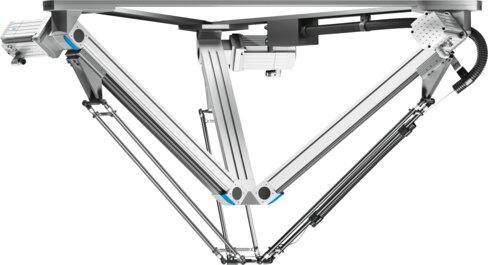

Reference imageConfirm configuration by manufacturer part number.
Festo
569800
Parallel kinematic system EXPT-120-E4
The Festo part number 569800 is a size 120 industrial component featuring a parallel kinematic system designed for horizontal mounting with a servo motor and a 100% duty cycle. This system provides a 1200 mm nominal working space diameter, a 100 mm nominal working space height, a 5 kg maximum rated load, a 1 kg rated load with maximum dynamic response, and a max picking rate of 140 picks/min in a 12" cycle. It delivers a max acceleration of 110 m/s², a max speed of 7 m/s, positioning and track precision of ±0.5 mm, and repetition accuracy of ±0.1 mm, alongside a max process force in the Z direction of 850 N and a typical process force in the Z direction of 750 N for working space diameters up to 300 mm. The kinematics have a base weight of 66 kg, a max horizontal frame strength of 215 N, and a max vertical frame strength of 475 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 569800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 569800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Parallel kinematic system
- Size
- 120
- Working space nominal diameter
- 1200 mm
- Working space nominal height
- 100 mm
- Mounting position
- Horizontal
- Motor type
- Servo motor
- Duty cycle
- 100%
- Max. acceleration
- 110 m/s²
- Max. speed
- 7 m/s
- Max. picking rate
- 140 picks/min in 12" cycle
- Maximum rated load
- 5 kg
- Rated load with maximum dynamic response
- 1 kg
- Positioning accuracy
- ± 0.5 mm
- Track precision
- ± 0.5 mm
- Repetition accuracy
- ±0.1 mm
- Max. process force in Z direction
- 850 N
- Typical process force in z direction
- 750 N working space diameter up to 300 mm
- Base weight of the kinematics
- 66 kg
- Max. frame strength horizontal
- 215 N
- Max. frame strength vertical
- 475 N
- Ambient temperature
- 0 °C...40 °C
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 569800. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
