Festo
569819

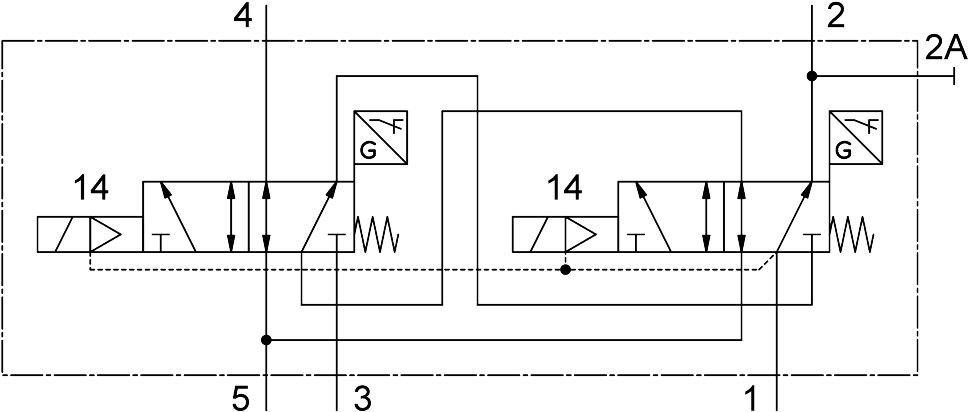

Control block VOFA-L26-T52-M-G14-1C1-APP
The Festo 569819 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design with a soft sealing principle and a 65 mm width. Operating on 24V DC within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar, 43.5 psi to 145 psi), this unit delivers a normal nominal flow rate of 950 l/min through G1/4 pneumatic working ports and includes an adjustable exhaust air function with mechanical spring reset in any mounting position. Certified with c UL us (OL) via UL MH19482, KC-EMV, IP65/NEMA 4 protection, and CE and UKCA markings per EMC and machinery directives conforming to EN 60947-5-2, it operates with no manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 569819
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 569819.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 950 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for machines
- Certicate issuing authority
- UL MH19482
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Safety function
- Tamper protection, protection against unexpected start-up | Reversing a movement
