Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
569820

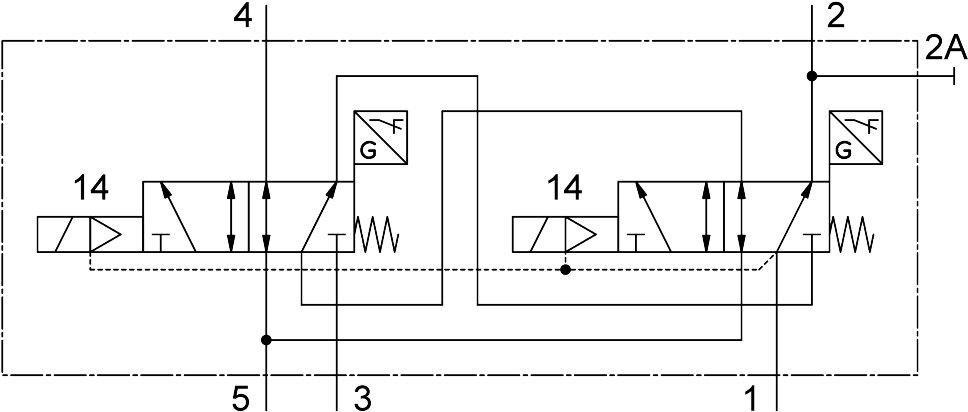

Control block VOFA-L26-T52-M-G14-1C1-ANP
The Festo part number 569820 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design and a mechanical spring reset method. This unit offers a width of 65 mm, a G1/4 pneumatic working port, a normal nominal flow rate of 950 l/min, and an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar, 43.5 psi to 145 psi) at a 24V DC operating voltage. It is built with an IP65 and NEMA 4 degree of protection, adjustable exhaust air function, soft sealing principle, and complies with EN 60947-5-2 with c UL us recognition, KC-EMV, CE, and UKCA markings. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 569820
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 569820.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 950 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for machines
- Certicate issuing authority
- UL MH19482
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Safety function
- Tamper protection, protection against unexpected start-up | Reversing a movement
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 569820. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
