Festo
569841
Connecting cable NEBU-M12W5-K-10-LE4
The Festo 569841 is an industrial component weighing 278 g with an angled M12x1 A-coded 5-pin socket featuring a screw-type lock on the field device end and an open-end cable on the control side. This part operates within an AC and DC voltage range of 0 V to 250 V, carries a 4 A current rating at 40° C, and includes two label holders with wire colors and connection numbers conforming to EN 60947-5-2 and EN 61076-2-101. Certified for ATEX Zone 2 and Zone 22 explosion prevention and protection in accordance with the provided certificate, it integrates four occupied pins and wires on both connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 569841
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 569841.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Cable designation
- With 2x label holders
- Product weight
- 278 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology

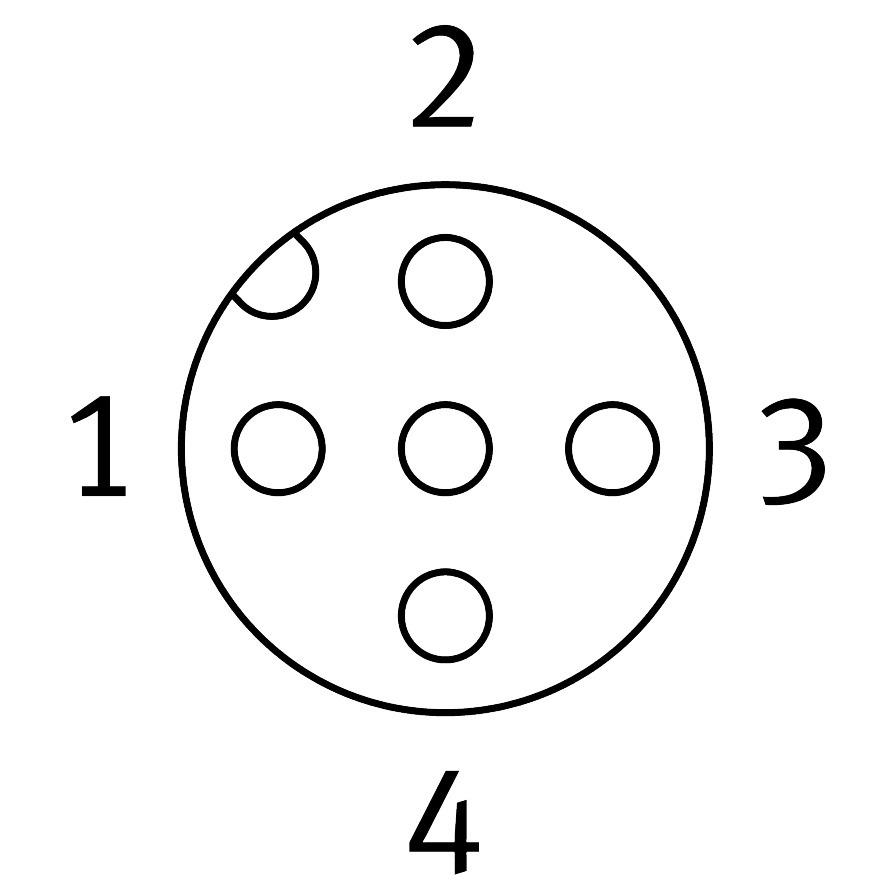

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable length
- 10 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Bending radius, xed cable installation
- 14 mm
- Bending radius, exible cable installation
- 46 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 569841. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
