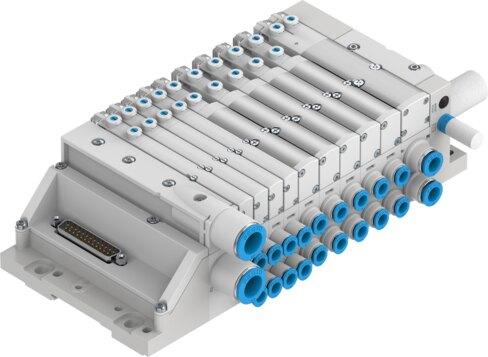

Name: Festo 569926 Valve manifold MPAL-VI
Brand: Festo

Valve manifold MPAL-VI

The Festo part number 569926 is an industrial component featuring valve terminal type 34 and an interchangeable valve manifold design with an electrical I/O system supporting fieldbus, I-Port, IO-Link, and multi-pin actuation. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.9 bar to 10 bar, a pilot pressure of 3 bar to 8 bar, and a medium and ambient temperature range of -5 °C to 50 °C. Rated with IP65 and IP67 protection degrees and a corrosion resistance class of CRC 3, this RoHS compliant unit holds CE, UKCA, KC, RCM, and c UL us certifications with LABS conformity to VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 569926
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 569926.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Fieldbus | I-Port | IO-Link® | Multi-pin
Electrical I/O system: Yes
Valve terminal type: 34
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...40 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 3 - High corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - Listed (OL)
Note on materials: RoHS compliant
Valve manifold design: Interchangeable valve sizes
Max. no. of valve positions: 32
Max. no. of pressure zones: 20
Actuation type: Electrical
Valve function: 2/2-way, closed, monostable | 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 569926. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
