Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
570040
Bus node CTEU-PB
The Festo 570040 is an industrial component measuring 40 mm in width, 91 mm in length, and 50 mm in height with a product weight of 90 g, designed for mounting on an electrical interface or electrical sub-base. It features a PA housing with IP65 and IP67 protection when mounted and unused connections are sealed, operating within an ambient temperature range of 0 °C to 50 °C and storage temperatures from -20 °C to 70 °C. The unit supports the Profibus DP protocol and includes diagnostic capabilities for communication errors, system diagnostics, and undervoltage, along with specific LED displays for operating voltage, module system status at I-Port 1 and 2, and bus errors. Compliance includes a CRC rating of 2, VDMA24364 Zone III LABS conformity, RoHS-compliant materials, CE, UKCA, KC-EMV, RCM, and cULus-Listed certifications. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570040
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570040.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- Probus DP
- Dimensions W x L x H
- 40 mm x 91 mm x 50 mm
- Width dimension
- 40 mm
- Type of mounting
- On electrical interface | on the electrical sub-base
- Product weight
- 90 g
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- In mounted state | Unused connections sealed
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Note on materials
- RoHS compliant
- Housing material
- PA
- LED display (product-specic)
- PS: operating voltage for electronics and load supply | X1: module system status at I-Port 1 | X2: module system status at I-Port 2
- LED display (bus-specic)
- BF: Bus error
- Diagnostics
- Communication error | System diagnostics | Undervoltage
- Control elements
- DIL switch
- Note on eldbus interface

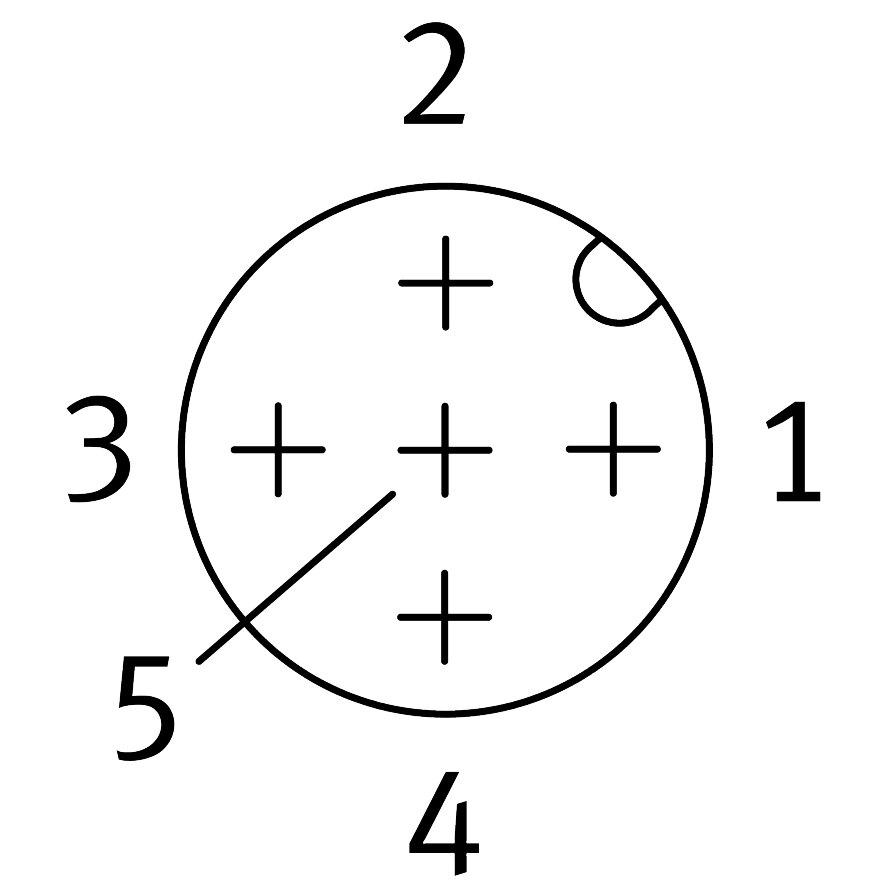

- Plug/socket M12x1 B-coded, 5-pin, degree of protection: IP65 | Optional connection technology with accessories:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570040. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
