Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

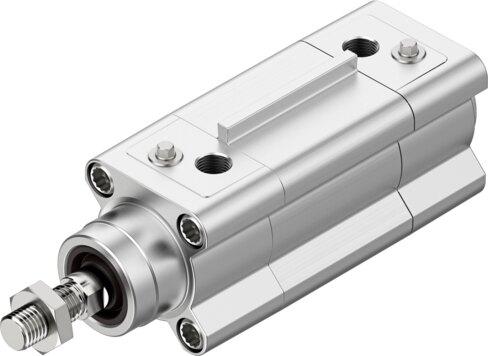

Reference imageConfirm configuration by manufacturer part number.
Festo
570079
ISO cylinder DSBF-C-...-50- -
The Festo 570079 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke ranging from 1 mm to 2800 mm, and a profile barrel structural design based on the ISO 15552 norm. Configured with M16x1.5 or M10 piston rod threads, external or internal rod ends, and multiple cushioning options including elastic rings and self-adjusting pneumatic end-position cushioning, it operates within a pressure range of 0.01 MPa to 1.2 MPa (0.1 bar to 12 bar). This unit supports position sensing via proximity switches and meets ATEX and UKCA directives for explosion protection in Zones 1, 2, and 21 across various operating temperatures and specialized variants. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570079
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570079.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5 | M10
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Increased chemical resistance | Hard scraper | Extended external thread piston rod | Internal thread on piston rod | Extended piston rod | Uniform, slow movement | Low friction | Through piston rod | Heat-resistant seals max. 120°C | Temperature range 0 to + 150°C | Temperature range -40 to 80°C
- Operating pressure
- 0.01 MPa...1.2 MPa | 0.1 bar...12 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570079. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
