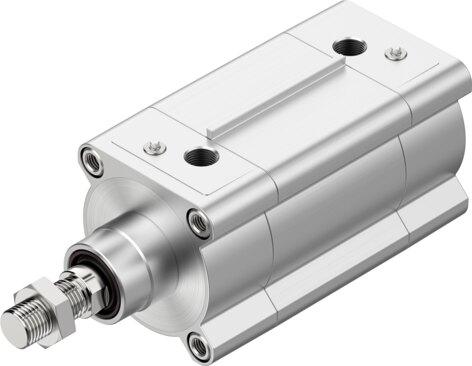

Reference imageConfirm configuration by manufacturer part number.
Festo
570081
ISO cylinder DSBF-C-...-80- -
The Festo 570081 is a double-acting industrial component with an 80 mm piston diameter and a stroke length ranging from 1 mm to 2800 mm, built on a profile barrel structural design with a piston and piston rod. Operating at pressures from 0.005 MPa to 1.2 MPa (0.05 bar to 12 bar), it features ISO 15552 compliance, position sensing via proximity switch, and adjustable or self-adjusting pneumatic end-position cushioning. This unit is certified for ATEX and UKCA Zone 1, Zone 2, and Zone 21 explosion protection and accommodates various operational variants including unlubricated operation, heat-resistant seals, and extreme temperature ranges. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570081
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570081.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5 | M12
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Increased chemical resistance | Hard scraper | Extended external thread piston rod | Internal thread on piston rod | Extended piston rod | Uniform, slow movement | Low friction | Through piston rod | Heat-resistant seals max. 120°C | Temperature range 0 to + 150°C | Temperature range -40 to 80°C
- Operating pressure
- 0.005 MPa...1.2 MPa | 0.05 bar...12 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX)
