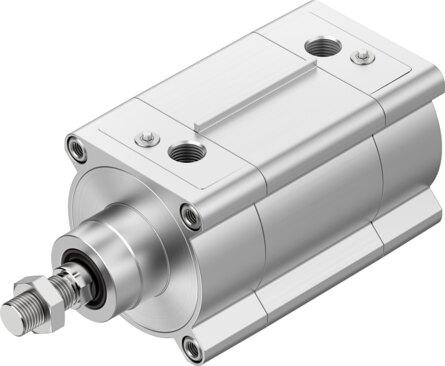

Reference imageConfirm configuration by manufacturer part number.
Festo
570082
ISO cylinder DSBF-C-...-100- -
The Festo 570082 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke ranging from 1 mm to 2800 mm, and a profile barrel structural design conforming to ISO 15552. This unit operates within a pressure range of 0.05 bar to 12 bar and incorporates pneumatic end-position cushioning, adjustable at both ends, alongside position sensing via proximity switch. Certified for hazardous locations under ATEX and UKCA directives for Zones 1, 2, and 21, the assembly supports universal mounting positions and various custom configurations including high-temperature seals up to 120ÞgC and unlubricated operation. Submit the exact part number, quantity, and application requirements to request a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570082
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570082.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5 | M12
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Increased chemical resistance | Hard scraper | Extended external thread piston rod | Internal thread on piston rod | Extended piston rod | Uniform, slow movement | Low friction | Through piston rod | Heat-resistant seals max. 120°C | Temperature range 0 to + 150°C | Temperature range -40 to 80°C
- Operating pressure
- 0.005 MPa...1.2 MPa | 0.05 bar...12 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX)
