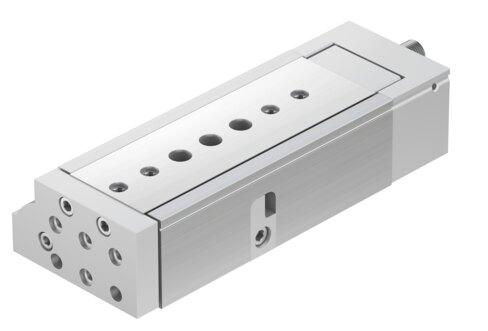

Reference imageConfirm configuration by manufacturer part number.
Festo
570200
Mini slide DGSL-20-80-EA
The Festo 570200 is a double-acting industrial drive unit featuring a 25 mm piston diameter, an 80 mm stroke, and a yoke structural design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates within a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and utilizes short elastic cushioning rings at both ends alongside adjustable end-position ranges of 6.5 mm at the front and 5.5 mm at the rear. Position sensing is accomplished via proximity switch in any mounting position under ambient temperatures from 0 °C to 60 °C, meeting ISO 14644-1 Class 7 cleanroom suitability with VDMA24364-B1/B2-L LABS conformity and CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 80 mm
- Adjustable end-position range/front length
- 6.5 mm
- Adjustable end-position range/rear length
- 5.5 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.45 Nm
- Cushioning length
- 1.2 mm
- Max. force Fy
- 4032 N
- Max. force Fz
- 4032 N
- Max. torque Mx
- 75 Nm
- Max. torque My
- 50 Nm
- Max. torque Mz
- 50 Nm
- Theoretical force at 6 bar, retracting
- 247 N
