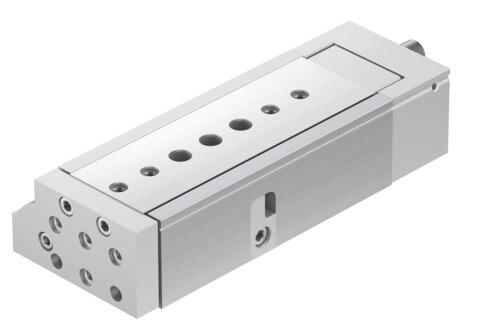

Name: Festo 570209 Mini slide DGSL-25-80-EA
Brand: Festo

Mini slide DGSL-25-80-EA

The Festo part number 570209 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a yoke drive unit operating mode with a piston, piston rod, and slide structural design. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar), this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and incorporates short elastic cushioning rings or pads at both ends alongside a ball bearing cage guide. It accommodates any mounting position, utilizes proximity switches for position sensing, functions in ambient temperatures from 0 °C to 60 °C, and meets ISO 14644-1 Cleanroom Class 7 suitability with VDMA24364-B1/B2-L LABS conformity and a CRC rating of 0. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570209
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570209.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 80 mm
Adjustable end-position range/front length: 66.5 mm
Adjustable end-position range/rear length: 5.5 mm
Piston diameter: 32 mm
Drive unit operating mode: Yoke
Cushioning: Short elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Yoke | Piston | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar
Max. speed: 0.8 m/s
Repetition accuracy: 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.55 Nm
Cushioning length: 1.3 mm
Max. force Fy: 4700 N
Max. force Fz: 4700 N
Max. torque Mx: 130 Nm
Max. torque My: 80 Nm
Max. torque Mz: 80 Nm
Theoretical force at 6 bar, retracting: 415 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 570209. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
