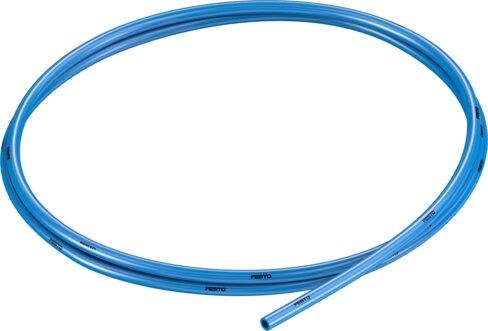

Reference imageConfirm configuration by manufacturer part number.
Festo
570350
Plastic tubing PUN-V0-4X1-BL-C
The Festo 570350 is a blue industrial component designed with a 4 mm outside diameter, a 2 mm inside diameter, and a Shore hardness of D 54 +/-3. This part features a minimum bending radius of 10 mm, a flow-rate relevant bending radius of 20 mm, and suitability for energy chains while weighing 0.012 kg/m. It operates within a pressure range of -0.095 MPa to 0.7 MPa across its full temperature range, handles compressed air and water media, and carries TÜV certification under certificate B 013277 0527 00 along with UL94 V-0 and V-2 flame test ratings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 4 mm
- Bending radius relevant for ow rate
- 20 mm
- Inside diameter
- 2 mm
- Min. bending radius
- 10 mm
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Note on ambient temperature
- unpressurized use up to 90°C
- Product weight by length
- 0.012 kg/m
- Pneumatic connection
- For plug connection outside diameter 4 mm
- Color
- Blue
- Information on color
- Deviates from the standard color due to ame protection
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
