570353

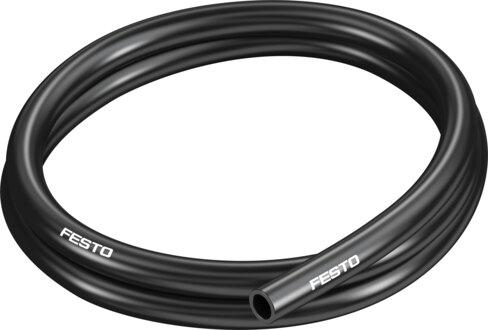

Name: Festo 570353 Plastic tubing PUN-V0-16X2,5-SW-C
Brand: Festo

Plastic tubing PUN-V0-16X2,5-SW-C

The Festo 570353 is an industrial component featuring an outside diameter of 16 mm, an inside diameter of 11 mm, and a D 54 +/-3 Shore hardness, engineered with tubing characteristics suitable for energy chains. It operates at temperatures from -35 °C to 60 °C with a temperature-dependent operating pressure range of -0.095 MPa to 1 MPa, and supports compressed air per ISO 8573-1:2010 [7:-:-] or liquid water. Certified by TÜV under certificate B 013277 0527 00, this black flame-protected part meets UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire tests while weighing 0.147 kg/m. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570353
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570353.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 16 mm
Bending radius relevant for ow rate: 90 mm
Inside diameter: 11 mm
Min. bending radius: 50 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.147 kg/m
Pneumatic connection: For plug connection outside diameter 16 mm
Color: Black
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 570353. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
