Name: Festo 570367 Plug socket MSSD-EB-M12-24VDC-SD-EX
Brand: Festo

Plug socket MSSD-EB-M12-24VDC-SD-EX

The Festo part number 570367 is a square socket industrial component featuring an angled cable outlet based on EN 175301-803 and conforming to EN 61984 standards. This 3-pin field device side connection mounts via an M2.5 central screw onto air solenoid valves, offering a 90-degree rotatable cable outlet and screw terminals on the control side for DC operating voltages from 0 V to 30 V and AC operating voltages from 0 V to 24 V. Certified for ATEX Zone 2 and Zone 22 hazardous environments with a contact durability rating of 50, this component requires adherence to certificate safety information. Submit part number 570367, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570367
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570367.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 175301-803
Conforms to standard: EN 61984
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Contact durability: 50
Cable outlet: Angled
Note on cable outlet: Can be rotated through 90°
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

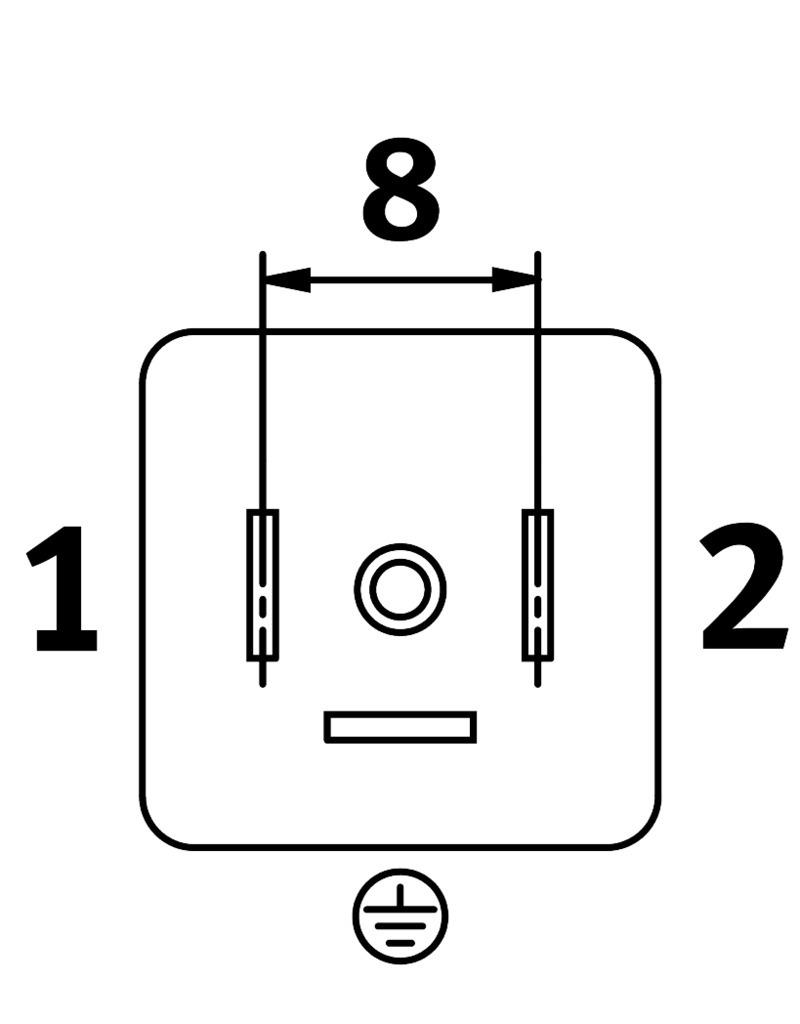

Electrical connection 1, connection technology: Connection diagram type C as per EN 175301-803
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M2.5 central screw
Electrical connection 2, function: Control side
Electrical connection 2, connection technology: Screw terminal
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...24 V
Current rating at 40° C: 6 A
Surge resistance: 0.8 kV
Protective earth connection: Available
Cable tting: M12x1.5
Approved cable diameter: 4 mm...6 mm
Connection cross section: 0.25 mm²...0.5 mm²
