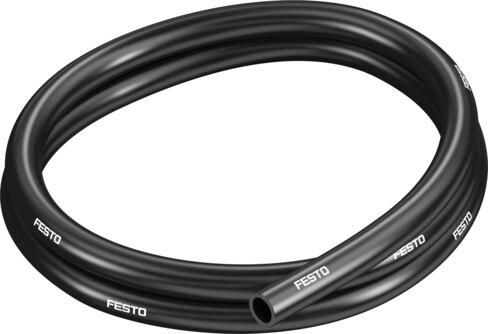

Name: Festo 570387 Plastic tubing PUN-H-14X2-SW
Brand: Festo

Plastic tubing PUN-H-14X2-SW

This Festo industrial component (Part Number 570387) features an ether-based TPE-U construction with a 14 mm outside diameter, a 9.8 mm inside diameter, and a minimum bending radius of 38 mm suitable for energy chains. The tubing operates across a temperature range of -35 °C to 60 °C, supporting compressed air and water media with a baseline operating pressure of -0.095 MPa to 0.6 MPa. It carries TÜV certification (certificate B 013277 0527 00), UL94 HB material fire testing compliance, VDMA24364-B2-L LABS conformity, and reduced Cu/Zn/Ni values (F1a) for Li-ion battery production. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570387
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570387.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 14 mm
Bending radius relevant for ow rate: 78 mm
Inside diameter: 9.8 mm
Min. bending radius: 38 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.091 kg/m
Pneumatic connection: For plug connection outside diameter 14 mm
Color: Black
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
