570388

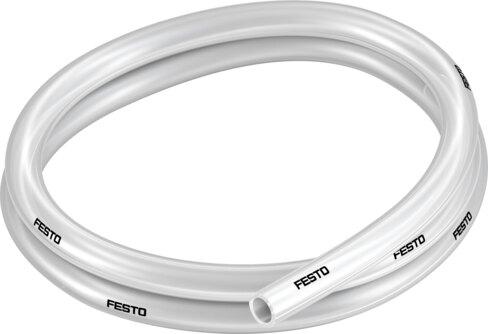

Name: Festo 570388 Plastic tubing PUN-H-14X2-NT
Brand: Festo

Plastic tubing PUN-H-14X2-NT

The Festo part number 570388 is an ether-based TPE-U industrial component featuring a 14 mm outside diameter, a 9.8 mm inside diameter, and a product weight of 0.091 kg/m. This tubing operates within a temperature range of -35 °C to 60 °C, supporting a pressure range of -0.095 MPa to 0.6 MPa across the entire temperature range and -0.095 MPa to 1 MPa under temperature-dependent conditions, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water. Certified by TÜV under authority B 013277 0527 00 with UL94 HB material fire testing, it is suitable for energy chains and Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570388
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570388.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 14 mm
Bending radius relevant for ow rate: 78 mm
Inside diameter: 9.8 mm
Min. bending radius: 38 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.091 kg/m
Pneumatic connection: For plug connection outside diameter 14 mm
Color: nature
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
