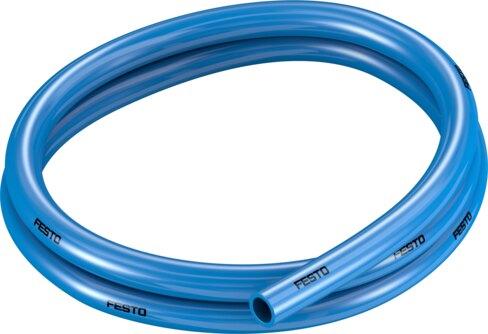

Name: Festo 570390 Plastic tubing PUN-14X2-BL
Brand: Festo

Plastic tubing PUN-14X2-BL

The Festo 570390 is a blue industrial component featuring a 14 mm outside diameter, a 9.8 mm inside diameter, and an ester-based TPE-U pneumatic tubing construction with a Shore hardness of D 52 +/-3. Engineered for energy chains with a product weight of 0.0949 kg/m, it operates within a temperature range of -35 °C to 60 °C and handles an operating pressure of -0.095 MPa to 0.7 MPa across its entire temperature range. Certified by TÜV under authority B 013277 0527 00, this RoHS-compliant tubing meets UL94 HB material fire tests and VDMA24364-B2-L LABS conformity for compressed air applications adhering to ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570390
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570390.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 14 mm
Bending radius relevant for ow rate: 84 mm
Inside diameter: 9.8 mm
Min. bending radius: 45 mm
Application note: TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0949 kg/m
Pneumatic connection: For plug connection outside diameter 14 mm
Color: Blue
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
