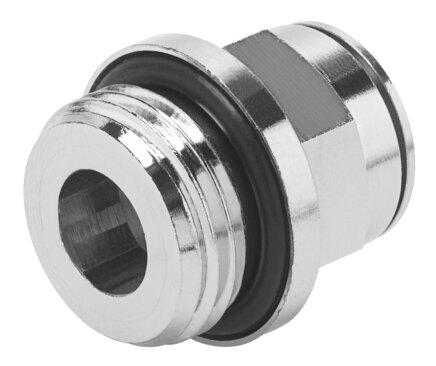

Reference imageConfirm configuration by manufacturer part number.
Festo
570451
Push-in fitting NPQM-D-G12-Q14-P10
The Festo part number 570451 is a standard straight-design industrial component featuring a nominal width of 12 mm, an external thread G1/2 pneumatic connection 1, and a pneumatic connection 2 for a 14 mm outside diameter tubing utilizing the push-pull principle. It operates across a pressure range of -0.095 MPa to 1.6 MPa (-0.95 bar to 16 bar; -13.775 psi to 232 psi) and an ambient temperature range of -20 °C to 70 °C with compressed air as per ISO 8573-1:2010 [7:-:-], while accommodating lubricated operation. Supplied in a pack size of 10 with a product weight of 42.4 g each, this RoHS-compliant component includes a sealing ring on the screwed plug, an external hexagon SW22 and hexagon socket SW12 mounting type, a nominal tightening torque of 9 Nm with a ±20% tolerance, a silver releasing ring, a corrosion resistance class (CRC) of 1, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570451
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570451.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 12 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 42.4 g
- Type of mounting
- External hexagon SW22 | Hexagon socket SW12
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 14 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570451. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
