Festo
570502

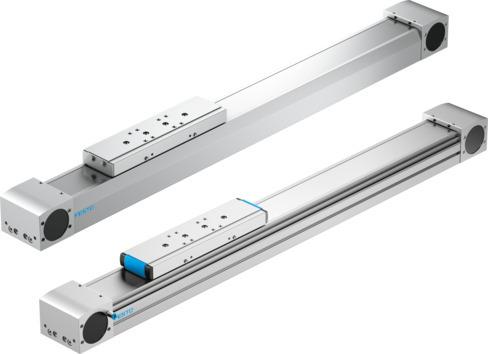

Belt driven linear actuator ELGA-TB-G-70- -
The Festo 570502 is an electromechanical linear axis featuring a toothed belt with a 3 mm pitch, a size 70 designation, and an effective drive pinion diameter of 28.65 mm. It incorporates a plain-bearing guide and accommodates a working stroke ranging from 50 mm to 8500 mm in any mounting position, driven by either a stepper or servo motor. Operational parameters include a maximum speed of 5 m/s, maximum acceleration of 50 m/s², repetition accuracy of ±0.08 mm, 100% duty cycle, maximum driving torque of 5 Nm, and maximum forces of 80 N (Fy) and 400 N (Fz). Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570502
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570502.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 70
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 147000 mm⁴
- 2nd moment of area Iz
- 425000 mm⁴
- Max. driving torque
- 5 Nm
- Max. force Fy
- 80 N
- Max. force Fz
- 400 N
- Max. force Fy total axis
- 80 N
- Max. force Fz total axis
- 400 N
- Max. no-load resistance to shifting
- 35 N
- Max. torque Mx
- 5 Nm
- Max. torque My
- 30 Nm
- Max. torque Mz
- 10 Nm
- Max. moment Mx total axis
- 5 Nm
- Max. moment My total axis
- 30 Nm
- Max. moment Mz total axis
- 10 Nm
- Max. feed force Fx
- 350 N
