Festo
570503

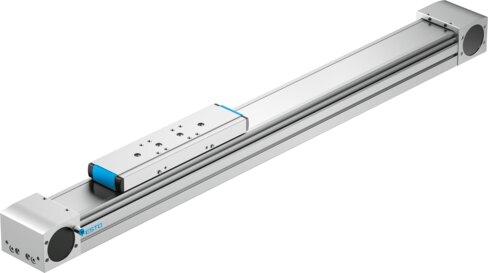

Belt driven linear actuator ELGA-TB-G-80- -
The Festo 570503 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a size 80 profile, and a working stroke ranging from 50 mm to 8500 mm. Driven by a stepper or servo motor through a drive pinion with an effective diameter of 39.79 mm, this unit delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm. Designed with a plain-bearing guide for any mounting position, it operates at a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C while offering an IP40 degree of protection and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570503
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570503.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 80
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 277000 mm⁴
- 2nd moment of area Iz
- 907000 mm⁴
- Max. driving torque
- 16.9 Nm
- Max. force Fy
- 200 N
- Max. force Fz
- 800 N
- Max. force Fy total axis
- 200 N
- Max. force Fz total axis
- 800 N
- Max. no-load resistance to shifting
- 50 N
- Max. torque Mx
- 10 Nm
- Max. torque My
- 60 Nm
- Max. torque Mz
- 20 Nm
- Max. moment Mx total axis
- 10 Nm
- Max. moment My total axis
- 60 Nm
- Max. moment Mz total axis
- 20 Nm
- Max. feed force Fx
- 800 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570503. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
