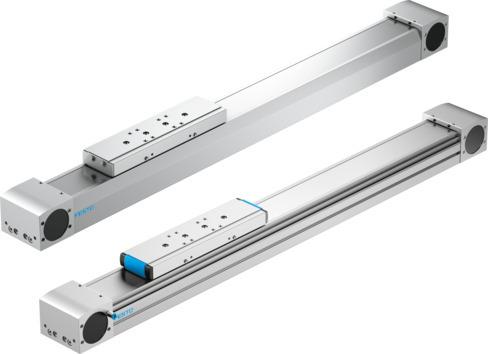

Reference imageConfirm configuration by manufacturer part number.
Festo
570504
Belt driven linear actuator ELGA-TB-G-120- -
The Festo 570504 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 52.52 mm drive pinion effective diameter, and a size 120 designation. This component incorporates a plain-bearing guide and supports any mounting position with a working stroke ranging from 50 mm to 8500 mm. Driven by either a stepper or servo motor, it achieves a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm under a 100% duty cycle. Operating within an ambient temperature range of -10 °C to 60 °C, the unit delivers a maximum driving torque of 34.2 Nm alongside maximum forces Fy of 380 N and Fz of 1600 N while maintaining an IP40 degree of protection and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 52.52 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 120
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 1230000 mm⁴
- 2nd moment of area Iz
- 4030000 mm⁴
- Max. driving torque
- 34.2 Nm
- Max. force Fy
- 380 N
- Max. force Fz
- 1600 N
- Max. force Fy total axis
- 380 N
- Max. force Fz total axis
- 1600 N
- Max. no-load resistance to shifting
- 114 N
- Max. torque Mx
- 20 Nm
- Max. torque My
- 120 Nm
- Max. torque Mz
- 40 Nm
- Max. moment Mx total axis
- 20 Nm
- Max. moment My total axis
- 120 Nm
- Max. moment Mz total axis
- 40 Nm
- Max. feed force Fx
- 1300 N
