Festo
570527

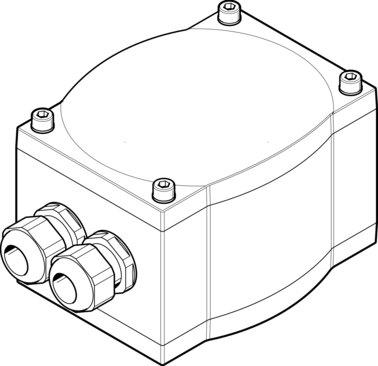

Limit switch box SRAP-M-CA1-270-1-A-T2P20
The Festo 570527 is a square industrial component based on the VDI/VDE 3845 NAMUR norm that measures rotation angle using the magnetic Hall measuring principle with a 4 to 20 mA analog output and a repetition accuracy of plus or minus 1 degree. This unit operates within a DC voltage range of 15 V to 30 V, drawing an idle current between 12 mA and 20 mA, and features short-circuit protection, overload protection, and reverse polarity protection for all electrical connections housed via a 9-pin pluggable screw terminal supporting a 2.5 mm² nominal conductor cross-section and an M20 cable fitting for 5 mm to 13 mm cables. Rated for an ambient temperature range of -20 °C to 80 °C, the device carries RCM compliance, c UL us recognition, RoHS material compliance, and CE and UKCA markings as per EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570527
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570527.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Ambient temperature
- -20 °C...80 °C
- Analog output
- 4 - 20 mA
- Repetition accuracy analog output in ± °
- 1 deg
- Short-circuit protection
- Yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Idle current
- 12 mA...20 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 9-pin | Screw terminal | Can be plugged in
- Closable nominal conductor cross-section
- 2.5 mm²
- Cable tting
- M20
- Approved cable diameter
- 5 mm...13 mm
- Max. cable length
- 30 m
- Mounting position
- Any
- Product weight
- 1000 g
- Housing material
- Wrought aluminum alloy
- Setting options
- Teach-in | Teach-in via electrical connection
- Angle detection setting range
- 0 deg...270 deg
- Degree of protection
- IP65
