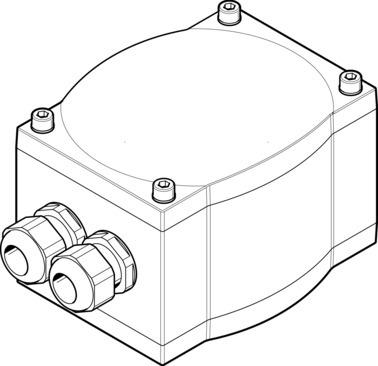

Reference imageConfirm configuration by manufacturer part number.
Festo
570528
Limit switch box SRAP-M-CA1-270-1-A-T2P20-EX2
The Festo 570528 is a rectangular industrial component based on the VDI/VDE 3845 NAMUR norm that measures rotation angle using a magnetic Hall measuring principle with an analog output of 4 to 20 mA and a repetition accuracy of ±1 degree. It features short-circuit and overload protection, operates within an ambient temperature range of -20 °C to 80 °C, and complies with EU and UK directives for EMC, RoHS, and ATEX/UKEX explosion protection for Zone 2 gas and Zone 22 dust environments. This RoHS-compliant device carries RCM and cULus recognized certifications, alongside hazardous area ratings for EPL Gc and EPL Dc. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570528
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570528.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Rectangular
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T5 Gc X
- ATEX category for dust
- II 3D
- Type of (ignition) protection for dust
- Ex tc IIIC T90°C Dc X
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosive ambient temperature
- -20°C <= Ta <= +80°C
- Note on materials
- RoHS-compliant
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Ambient temperature
- -20 °C...80 °C
- Analog output
- 4 - 20 mA
- Repetition accuracy analog output in ± °
- 1 deg
- Short-circuit protection
- yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Idle current
- 12 mA...20 mA
- Reverse polarity protection
- for all electrical connections
