Festo
570737

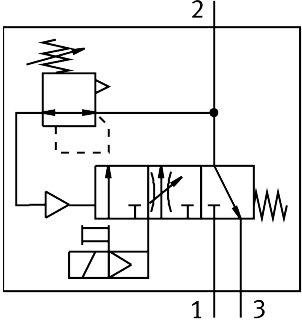

Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS
The Festo 570737 is an industrial component from the MS series, size 9, featuring a width dimension of 90 mm and a piston gate valve structural design with a soft sealing principle. This electrically actuated, piloted 3/2-way closed monostable valve provides pressurization and exhausting functions up to category 1, performance level c, operating at pressures from 0.35 MPa to 1.6 MPa (3.5 bar to 16 bar) with a normal nominal flow rate of 8300 l/min to 16550 l/min and a 24 V DC coil consuming 8.4 W at 100% duty cycle. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570737
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570737.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Series
- MS
- Size
- 9
- Width dimension
- 90 mm
- Safety function
- Exhausting
- Performance Level (PL)
- Exhaust/up to category 1, performance level c
- Structural design
- Piston gate valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Manual override
- None
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable | Pressurization function
- Operating pressure
- 0.35 MPa...1.6 MPa | 3.5 bar...16 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 8300 l/min...16550 l/min
- Standard ow rate exhaust 6-> 0 bar
- 19730 l/min...21720 l/min
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 8.4 W
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Noise level
- 93 dB(A)
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570737. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
