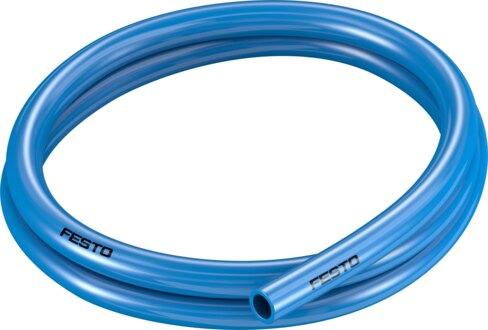

Reference imageConfirm configuration by manufacturer part number.
Festo
570768
Plastic tubing PUN-V0-16X2-BL
The Festo 570768 is a blue industrial component featuring an outside diameter of 16 mm, an inside diameter of 11.8 mm, and a shore hardness of D 54 +/-3, weighing 0.122 kg/m. Designed with a minimum bending radius of 50 mm and a flow-relevant bending radius of 90 mm, this tubing is suitable for energy chains and operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water. It holds TÜV certification under certificate issuing authority B 013277 0527 00, meets UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire test materials, and conforms to VDMA24364-B2-L LABS (PWIS). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 90 mm
- Inside diameter
- 11.8 mm
- Min. bending radius
- 50 mm
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...0.9 MPa | -0.95 bar...9 bar | -13.775 psi...130.5 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Note on ambient temperature
- unpressurized use up to 90°C
- Product weight by length
- 0.122 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Blue
- Information on color
- Deviates from the standard color due to ame protection
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
