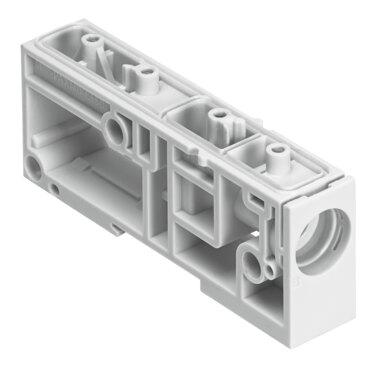

Reference imageConfirm configuration by manufacturer part number.
Festo
570774
Power supply module VMPAL-SP
The Festo 570774 is an industrial component featuring an interchangeable valve sizes manifold design, a width of 23.2 mm, a length of 107.3 mm, and a product weight of 50 g. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this unit includes pneumatic connection 1 for a 20 mm cartridge and a power supply module composed of wrought aluminum alloy and PA-reinforced material. Built with a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS-compliant materials, it operates within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 23.2 mm
- Length
- 107.3 mm
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- for 20 mm cartridge
- Note on materials
- RoHS compliant
- Power supply module material
- Wrought aluminum alloy | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570774. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
